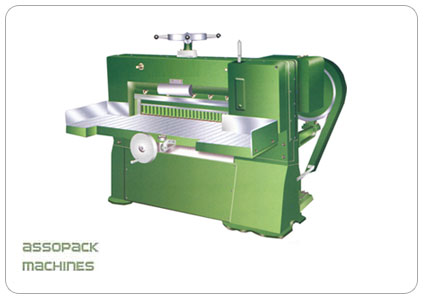

Paper Guillotines Machines high speed automatic paper guillotine with automatic clamping system with an electro-magnetic clutch and brake. Spring clamping is automatically controlled by two spring loaded levers and traversing links in connection with the knife carrier to make the full clamping pressure effective at any height before the knife starts at any height before the knife starts cutting. Clamp as well as foot are operated simultaneously to facilitate cutting line checking prior to the cutting process. As overloaded earthling device has been incorporated and this is again a safety device.
Technical Specifications :
| Model | 840 | 900 | 1070 |
|---|---|---|---|
| Cutting Length | 840 mm (33") | 900 mm (36") | 1070 mm (42") |
| Cutting Width | 840 mm (33") | 900 mm (36") | 1070 mm (42") |
| Clamp Opening | 100 mm (4") | 113 mm (4 1/2) | 125 mm (5") |
| Cuts per minute (Approx.) | 30 | 25 | 20 |
| Power Requirements (H.P.) | 2 | 3 | 3 |
| Additional Power for Motorised back Gauge (HP) | 1/2 | 1/2 | 1/2 |
| Floor Space | 1650 x 1650 mm 66" x 66" | 1950 x 1950 mm 78" x 78" | 2150 x 2150 mm 86" x 86" |
