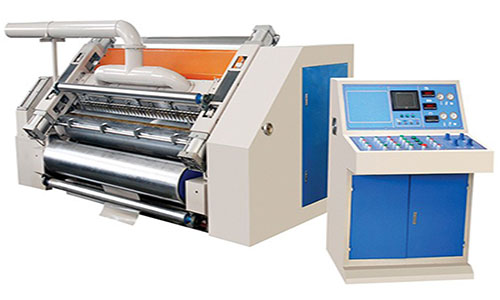

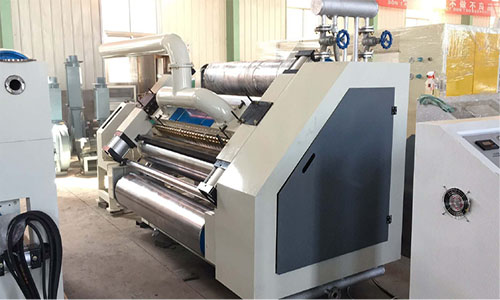

Corrugated Paper Board Fingerless Single Facer Machine
Corrugated Paper Board Fingerless Single Facer Machine
High Speed Fingerless Single Facer Machine is is for produce the single flute corrugated cardboard. It is one kind of Single Facer series.
It is part of Corrugated Cardboard Machine line & Automatic Corrugation Machine line.
The 52CrMo high quality alloy steel Corrugating Rolls . High speed machine to produce the corrugated cardboard. It is the heart part of the 2 layer Corrugating Production Lines and automatic 3/5/7 layer Corrugating Production Lines in the corrugated packaging industry. The flute of the cardboard can be A/B/C/E/F flute. The heating way of the machine can be electric , steam, oil , gas heating. Working speed:0-150m/min.
Structural Features:
-- Paper feeding: fingerless vacuum suction, with high pressure powerful draught fan,with silencer.
-- Engine base and main machine wallplate: iron casting material, thickness of the wall plate, adopt independent speed changing box, and 3 sets universal joint transmission.
-- Diameter of main corrugated roll: ¢280mm, and are made of 48CrMo alloy steel, after hardening and tempering, inner holes fine boring, NC grinding, mid frequency quenching, surface grinding and hard chrome plated, the rigidity of surface is higher than HRC52.
-- Pressure roll diameter: ¢280mm, surface are grinding and plate chrome, cylinder control updown, raw material is 48CrMo alloy steel, hardening and tempering.
-- Glue parts: pneumatic control glue supply and glue back, diameter of the applicator glue roll : ¢242mm, surface are treated by polished and chrome plated. Electric adjusting the glue quantity.
-- Press roll adopt ¢160 cylinder control adjut the gap with corrugated roll.
-- Pre-heater roll adopt seamless steel pipe, Diameter¢402mm, are all connected with rotary joint
and metal soft pipe.
Technical parameter:
| 1 | Working width | 1600mm |
| 2 | Operation direction | left or right |
| 3 | Design speed | 100m/min |
| 4 | Temperature scope | 160-220 C |
| 5 | Pneumatic working pressure | 0.4-0.9mpa |
| 6 | Pressure | 0.8-1.3mpa |
| 7 | Flute profile | uv type or uvv type |
Parameter of Main roll:
| 1 | Diameter of corrugated roll | ¢280mm |
| 2 | Diameter of pressure roller | ¢280mm |
| 3 | Diameter of applicator glue roll | ¢242mm |
| 4 | Diameter of preheater roll | ¢402mm |
Motor parameter:
| 1 | Main driving motor | power | 11kw |
| Normal voltage | 380V 50hz | ||
| Continues (S1) working system | |||
| 2 | Wind suction motor | Normal voltage | 380V 50hz |
| Continues (S1) working system | |||
| 3 | Glue adjustment reduction box | power | 80kw |
| Normal voltage | 380V 50hz | ||
| Short time (S2) working system | |||
| 4 | Glue adjusting gap motor | power | 0.55kw |
| Normal voltage | 380V 50hz | ||
| Short time (S2) working system | |||
| 5 | Glue pump motor | power | 0.55kw |
| Normal voltage | 380V 50hz | ||
| Continues (S1) working system | |||
