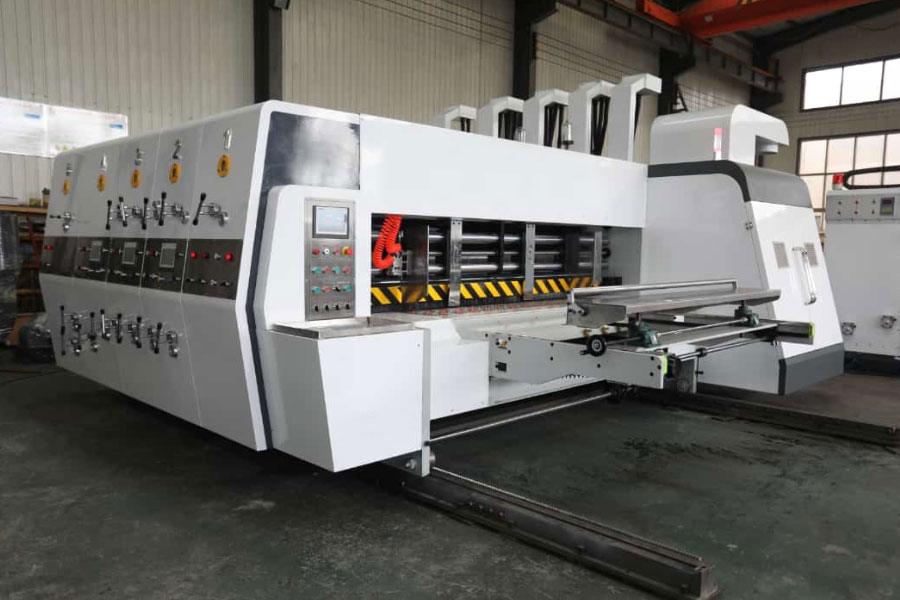

Flexo Printer Slotter Die Cutter & Auto Stacker

Adopt PLC to control independently each machine and interlink them through telecommunication network.
Adopt a NT color touch screen to clearly display all the parameter settings.
All the transmission rollers are make of high-quality steel whose surface is chrome plated and conducted dynamic balance correction.
The clearance of all the transmission rollers is manually adjustable and can be displayed on the dial.
The main transmission gear is made of high-quality steel. And the gear surface is well ground after being conducting hear treatment.
Adopt key-free connecting ring to connect the cardboard feed gear wheel bush gear and planet gear with the shaft-head to promote performance and printing precision.
Adopt an oil pump spraying system to lubricate the gears All the machines are equipment with safety control switches to control the travel of the machine unrig go ensure the safety of operators.
Transducers, PLC, NT terminal monitors and main electronic control components are from international famous companies.

Model	AM08		AM12		AM16		AM20
Model	2200	2200	2500	2800	2800	3100	3600	3900	4200	4500
Max machine speed	150	150	150	150	130	130	100	100	80	80
Max Cardcoard Size	870X 2150	870X 2350	1270X 2650	1270X 2950	1670X 2950	1670X 3250	2070X 3750	2070X 4050	2070X 4350	2070X 4650
Man Cardcoard Size	250X450		360X700		450X700		480X900
Skip feed Size	1200X 2150	1200X 2350	1600X 2650	1600X 2950	2000X 2950	2000X 3250	2400X 3750	2400X 4050	2400X 4350	2400X 4500
Max printing area	800X 2000	800X 2200	1200X 2500	1200X 2800	1600X 2800	1600X 3100	2000X 3600	2000X 3900	2000X 4200	2000X 4500
Min slotting distance	185X60X185X60		250X80X250X80		280X80X280X80		350X100X350X100
Standard plate thickness	7.2
Applicable cardboard thickness	1.5-11		1.5-12		1.5-12		1.5-13
